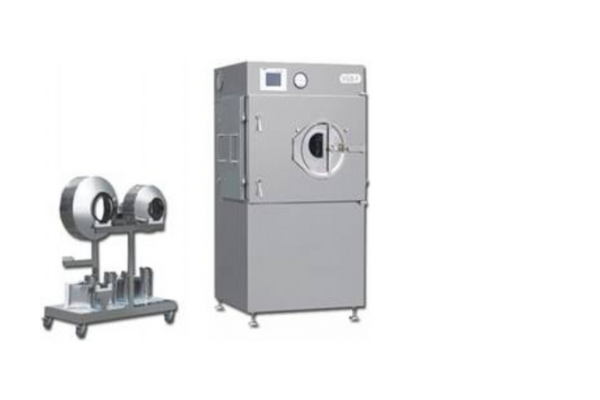

AUTO COATER

Design is cGMP – Current Good Manufacturing practice compliance. All contact parts AISI 316 & non contact parts AISI 304. Fully automatic film & sugar coating process by PLC Controls with HMI touch screen. The machine structure made from S.S.304 quality fitted with closed Drive, Perforated Pan, Washing sink,Inlet air plenum, Exhaust air plenum with Air tight door. The perforated pan having specially designed baffles on side slope face and anti slide baffles on side slope face and anti slide baffles on diagonal face for mixing. Automatic Spraying systems provided with Atomized spray Gun, Adjustable spray gun arms, High precise flow peristaltic pupm, solution holding tank with pneumatic stirrer.Inlet Air Handler is double scan inside SS 304 and outside powder coated Inlet AHU (air handler unit) with Pre filter-10 Micron, Blower assembly, Heat exchanger, final filter-5 Micron and HEPA filter – 0.3 micron. Exhaust air system provided with blower with option of Wet Scrubber or DRY filter system. Inlet air and Exhaust Air flow controls by AC Frequency drive of blower.All doors, safety guards and covers are provided with a suitable food grade seals. Inbuilt CIP System for fast and easy cleaning. Tablet discharge system provided.
