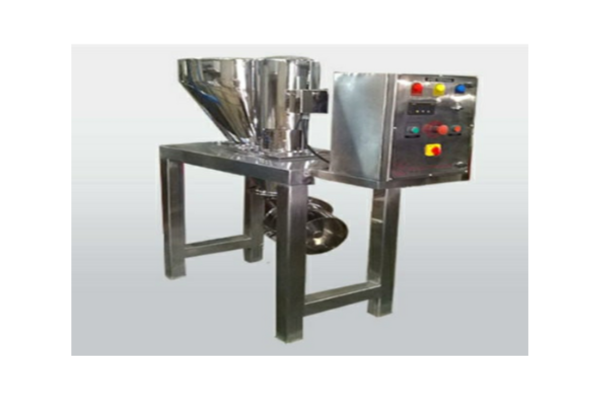

Co-Mill is widely used for sizing, high speed shredding, and grinding of powder, granules, tablets and a wide range of wet and dry material. As compared to the four common principle of size reduction i.e. cutting,attrition, impact and pressure, which often do not produce controlled size reduction, this machine utilizes the principle of centrifugal shearing force. It finds wide applications in the pharmaceutical and nutraceutical industry for shredding of rejected tablets, dry milling, wet milling, shredding of oversized material, etc.
MODEL | 75 | 125 | 200 | 300 | 400 |
WORKING VOLUME | 01-10 | 50-75 | 200-250 | 400-5000 | 600-750 |

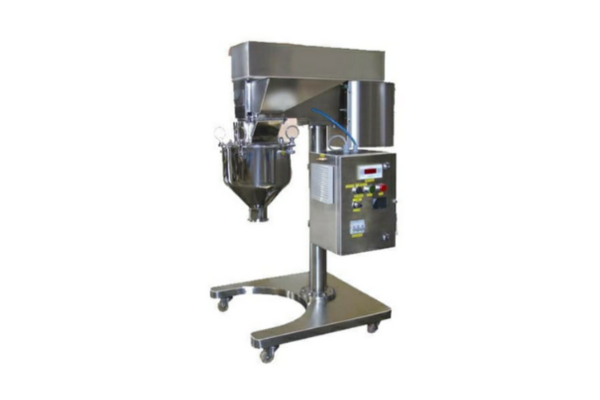

Multi Mill is used for high speed granulation, pulverization, milling, shredding, chopping, size reduction of wide range of materials without any special attachment. As compared to four principles of size reduction i.e. grinding, compression, impact and shearing which often do not produce controlled size reduction this machine utilizes the principle of variable force swing hammer blades having both knife and impact edges rotating with carefully selected screen to control the size reduction. Flow path of materials with carefully selected screen to control the size reduction. Flow path of materials is streamlined during comminuting material entering the chamber travels to the periphery and passes though the screen tangentially and radially choking and temperature rise.
MODEL | 75 | 125 | 200 | 300 | 400 |
WORKING VOLUME | 01-10 | 50-75 | 200-250 | 400-5000 | 600-750 |
